Outside storage on Sportsmobile Sprinter Short Chassis

Share your Class B Camper Van Tweaks, Mods & Projects here.

Outside storage on Sportsmobile Sprinter Short Chassis

Postby oschreiber » Wed Dec 30, 2009 12:30 am

Conversion comes with External Tire Carrier on a left rear receiver and a center hitch receiver.
Bought MAX Swingaway Plus Cargo Carrier (http://www.stowaway2.com/product.aspx?id=130&cid=59) mounted on center hitch receiver.
Added third hitch receiver (an RV bumper 4" hitch receiver http://www.prolineracks.com/bumper-hitch-adapters.html) to mount on right side of 2.5" hitch square tube.
Bought a 5 bikes hitch carrier (http://www.discountramps.com/5-bike-carrier.htm) to mount on
Bought a Yakima 6 ski carrier to mount --upside down because of clearance--on bike carrier(http://www.amazon.com/Yakima-HitchSki/dp/B000B0KTEQ)
Used right rear space under chassis behind hitch to fit tire chains held in place by screws--no plastic because next to exhaust.
Used left rear space under chassis behind hitch to fit box to carry waste 3" hose next to tank valve.
Used center rear space under chassis in front of hitch and behind BW/GW tank to fit 4 10"x14"x6" boxes to store electrical hookup cables, water hookup hoses and tools. (http://www.reallyusefulproducts.co.uk/usa/ bought at Staples/Office Depot)

Spare tire, Swingaway Stoaway2 cargo box, bike and ski carriers

Spare tire, Swingaway Stoaway2 cargo box, bike and ski carriers

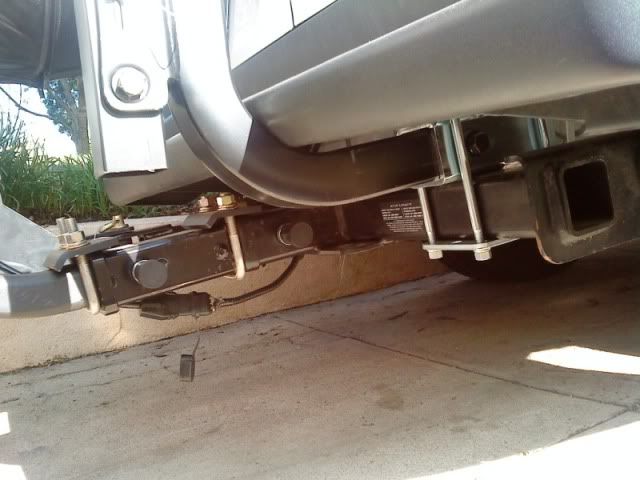

4" RV hitch receiver for bike carrier

Right rear space under chassis behind hitch for tire chains.

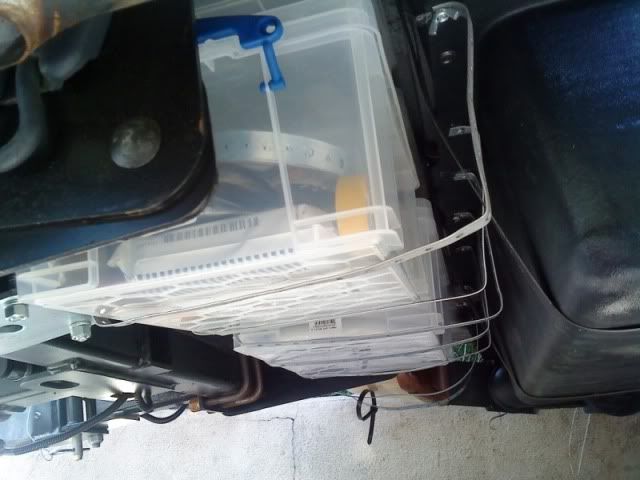

Center storage area for 4 boxes

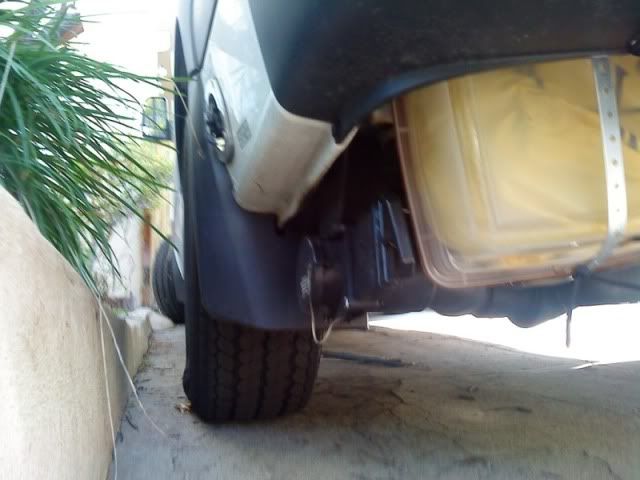

Box for sewer 3" hose storage on left rear behind BW/GW tank drain valve

Box for sewer 3" hose storage on left rear behind BW/GW tank drain valve.

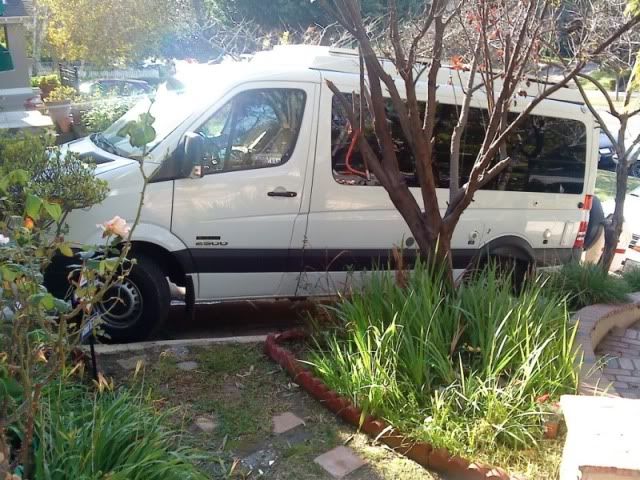

Short chassis with Penthouse pop up top and solar panels.
Attachments
Right rear space under chassis behind hitch for tire chains.
Box for sewer 3" hose storage on left rear behind BW/GW tank drain valve
Box for sewer 3" hose storage on left rear behind BW/GW tank drain valve
Center storage area for 4 boxes
4" RV hitch receiver for bike carrier
Spare tire, Swingaway Stoaway2 cargo box, bike and ski carriers
Spare tire, Swingaway Stoaway2 cargo box, bike and ski carriers
Short chassis with Penthouse and solar panels.
